Posei­don Sound Sys­tem: Com­mand­ing The Sound Waves ;)

Our Cus­tom Built System

DSC 0070

We want­ed to do some­thing a lit­tle dif­fer­ent from the audio­phile route — the design brief giv­en to young tal­ent Bosco Tay­lor was to have a sys­tem that was still up there for Hi-Fi lis­ten­ing but also great for live music with almost zero pow­er com­pres­sion over time due to the triple stacked coils, super low dis­tor­tion and as wide dis­per­sion as possible.

We were keen to explore the newest tech­nol­o­gy rather than find­ing old com­po­nents- which is more in line with our for­ward think­ing approach to the venue. We set­tled on a design that uses the best com­po­nents avail­able today whilst not shy­ing away from DSP to tune them.

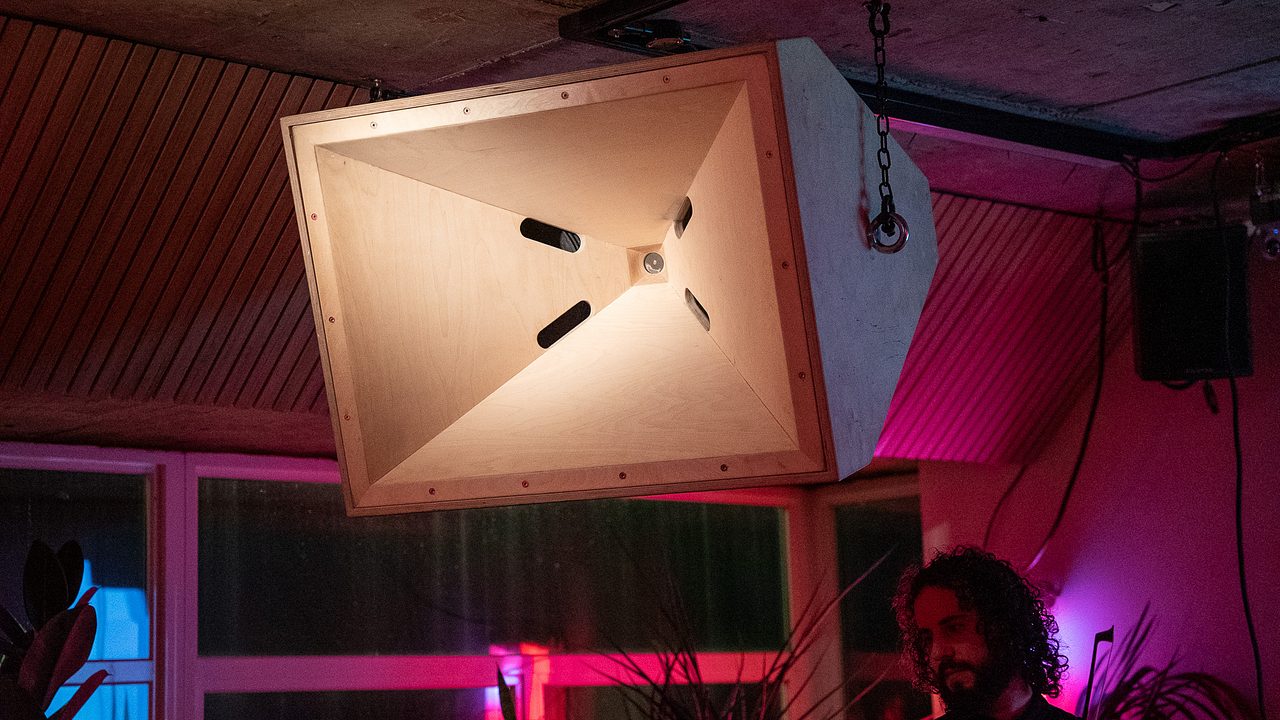

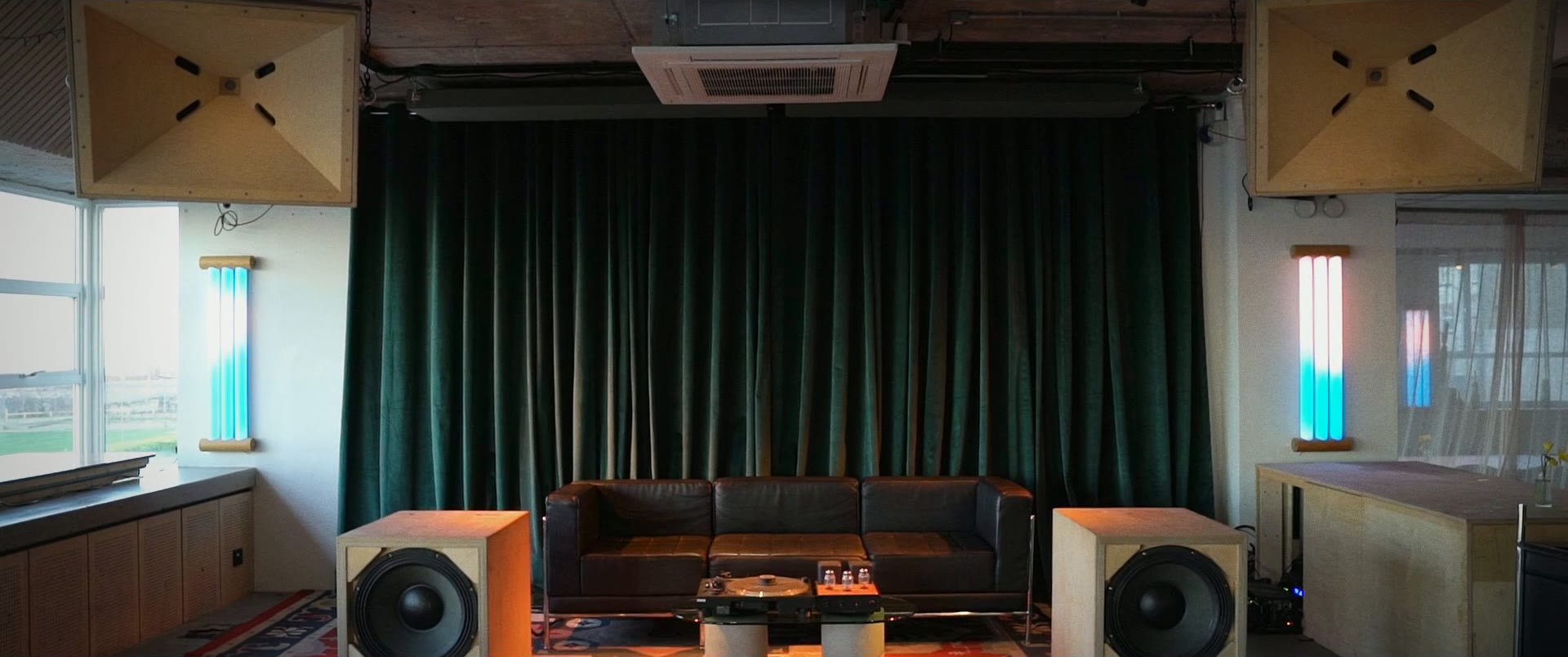

We’re extreme­ly hap­py with the sound stage, the def­i­n­i­tion and the dis­per­sion from hav­ing a hor­i­zon­tal horn design and hung from the ceil­ing, the tech­nol­o­gy is sim­i­lar to the Dan­ley Syn­er­gy Horn, how­ev­er the focus is not all out Sound Pres­sure Lev­el (SPL) but using the finest PA dri­vers avail­able in order to cre­ate a more HiFi sound but still be suit­able for live music with excel­lent impulse response characteristics.


In our test­ing we tried some valve colour­ing but it sound­ed bet­ter with­out, due to the clar­i­ty of the dri­vers. We are cur­rent­ly test­ing Lin­ear Research amps along­side offer­ings from Lab Grup­pen and Pow­er­soft to begin with. As with any sys­tem we will refine over time and test new com­po­nents but even with the cur­rent ampli­fi­ca­tion the sys­tem shines.

Their high fideli­ty also suits high qual­i­ty mix­ers such as the Iso­noe 420 and real­ly expos­es the qual­i­ty of phono pre­amps which is some­thing we are con­tin­u­ing to explore.

Tops — Uni­ty horn loaded with dual 15″ tetra­coils (18 sound) and a co-axi­al 1.4 B&DCX

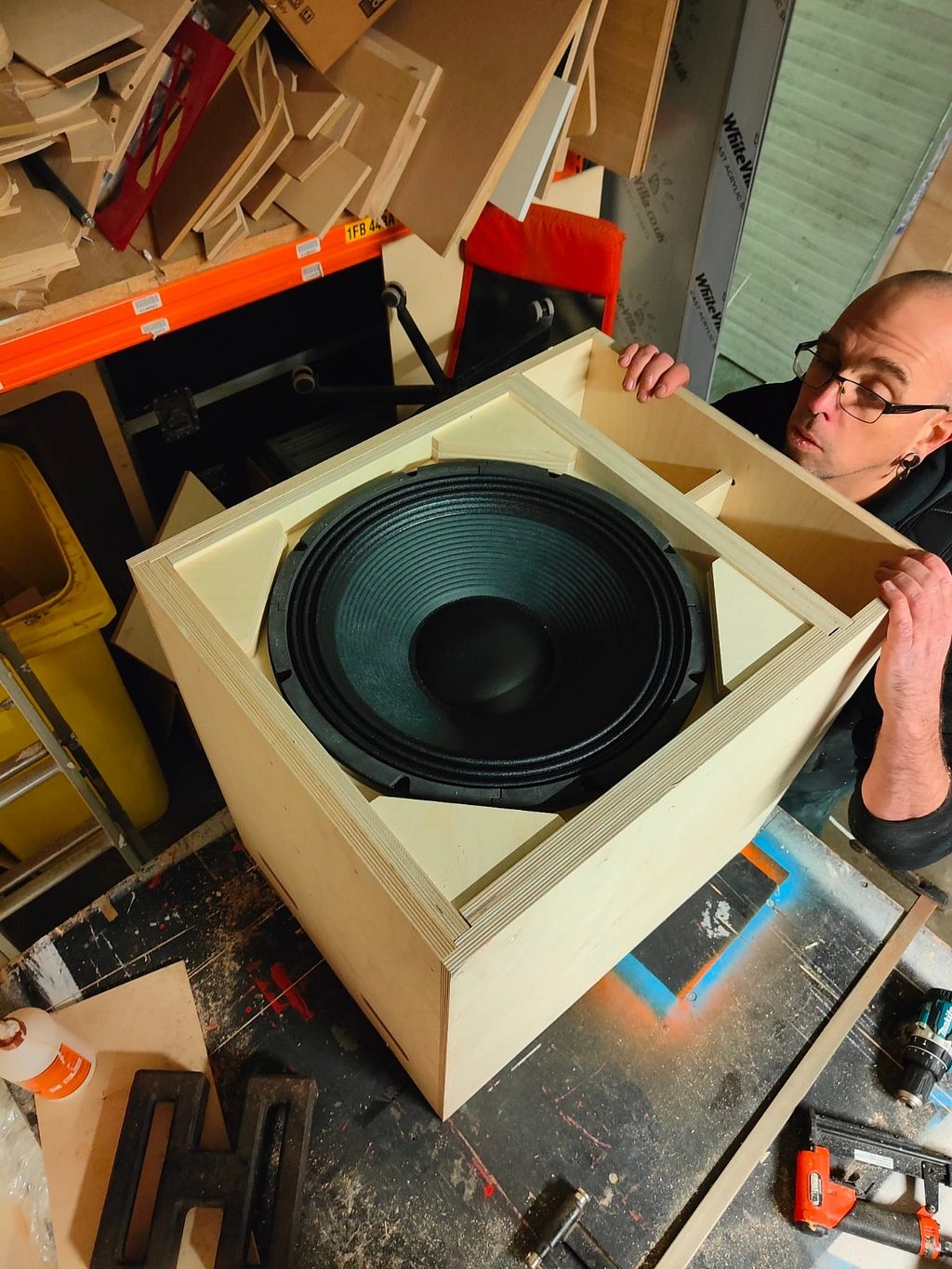

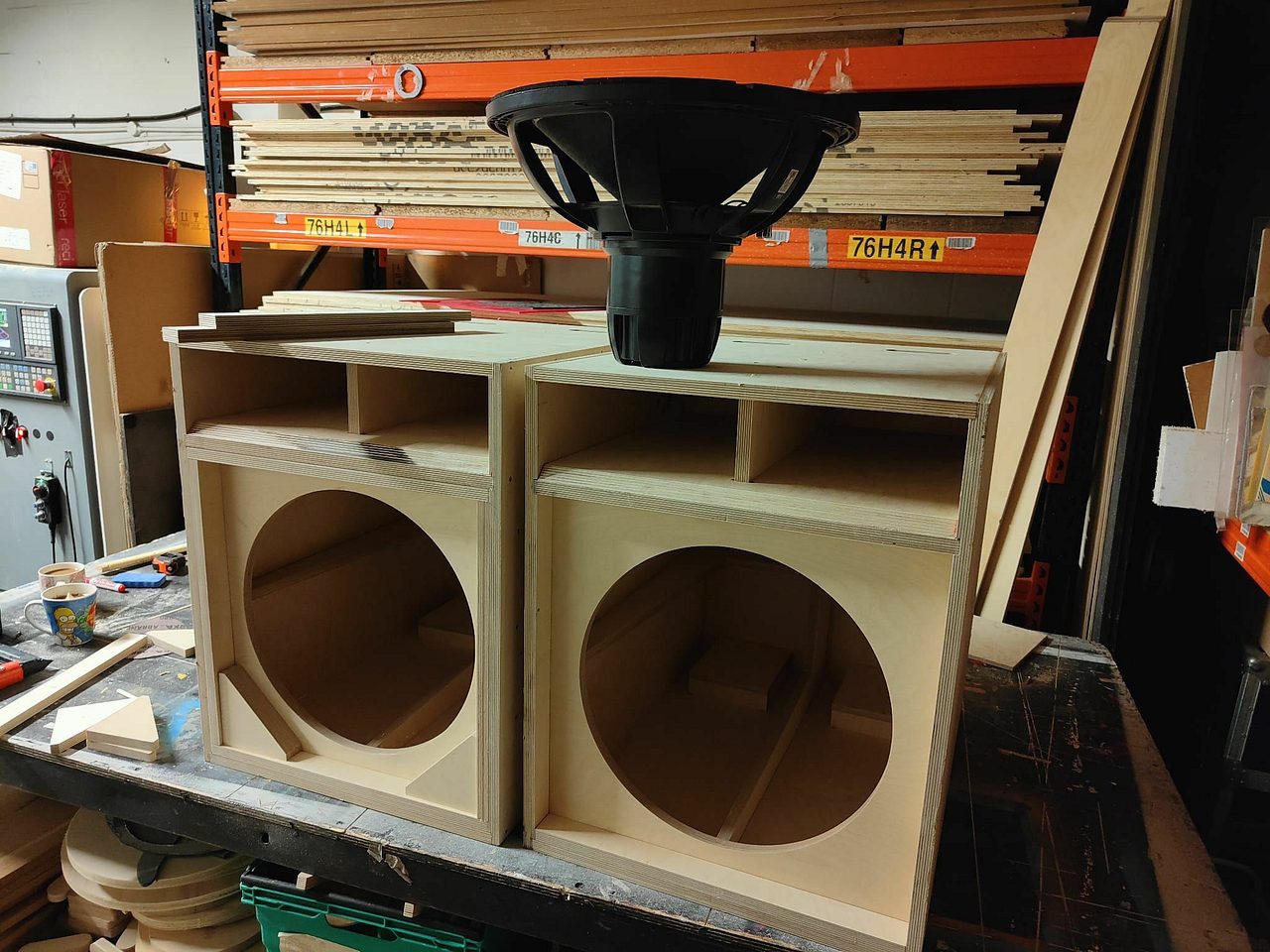

Subs — 18 Sound 18” tetracoil

Whats App Image 2022 12 13 at 6 18 57 PM
Whats App Image 2022 12 12 at 8 14 46 PM 1
Whats App Image 2022 12 12 at 8 13 13 PM

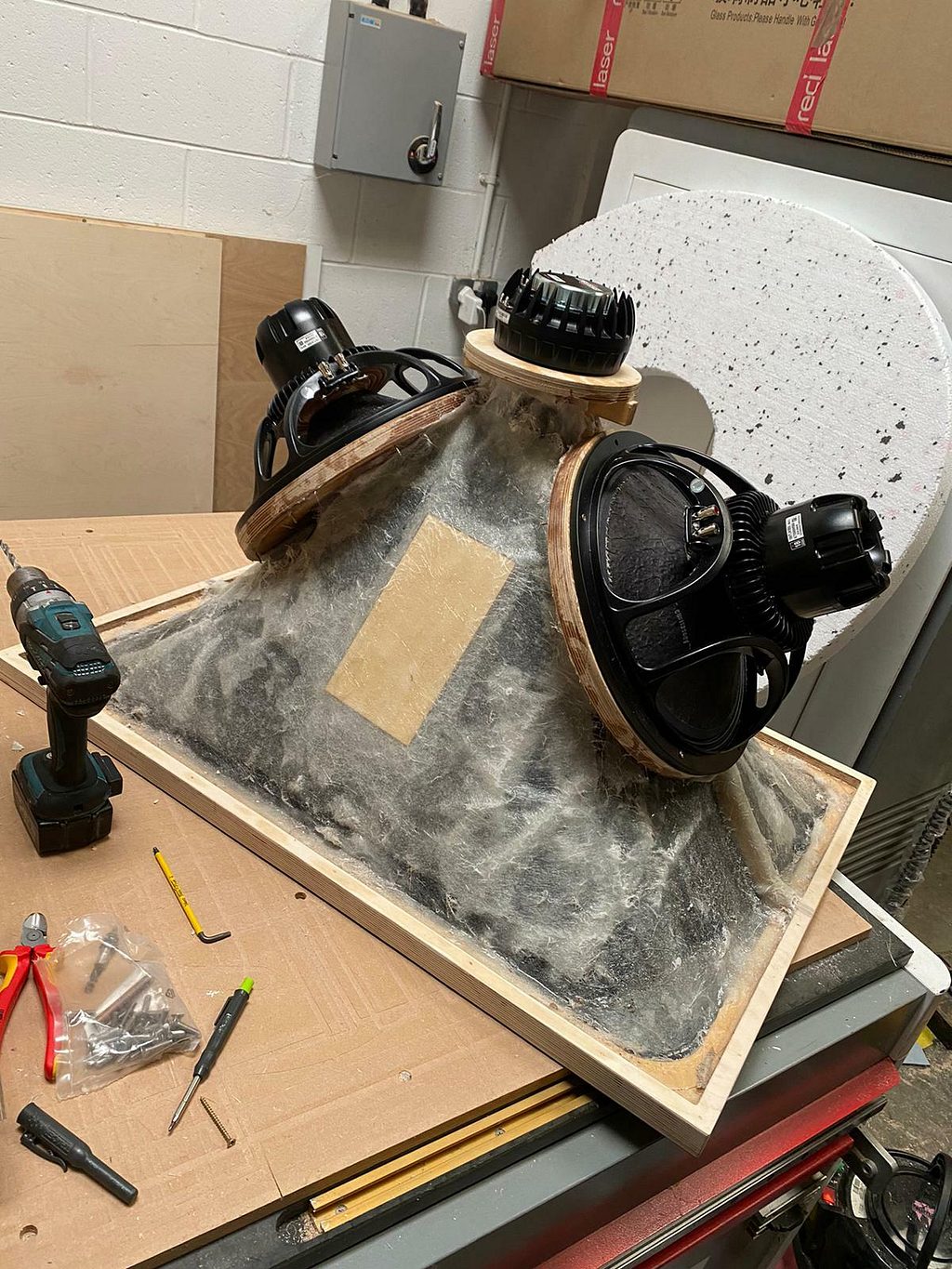

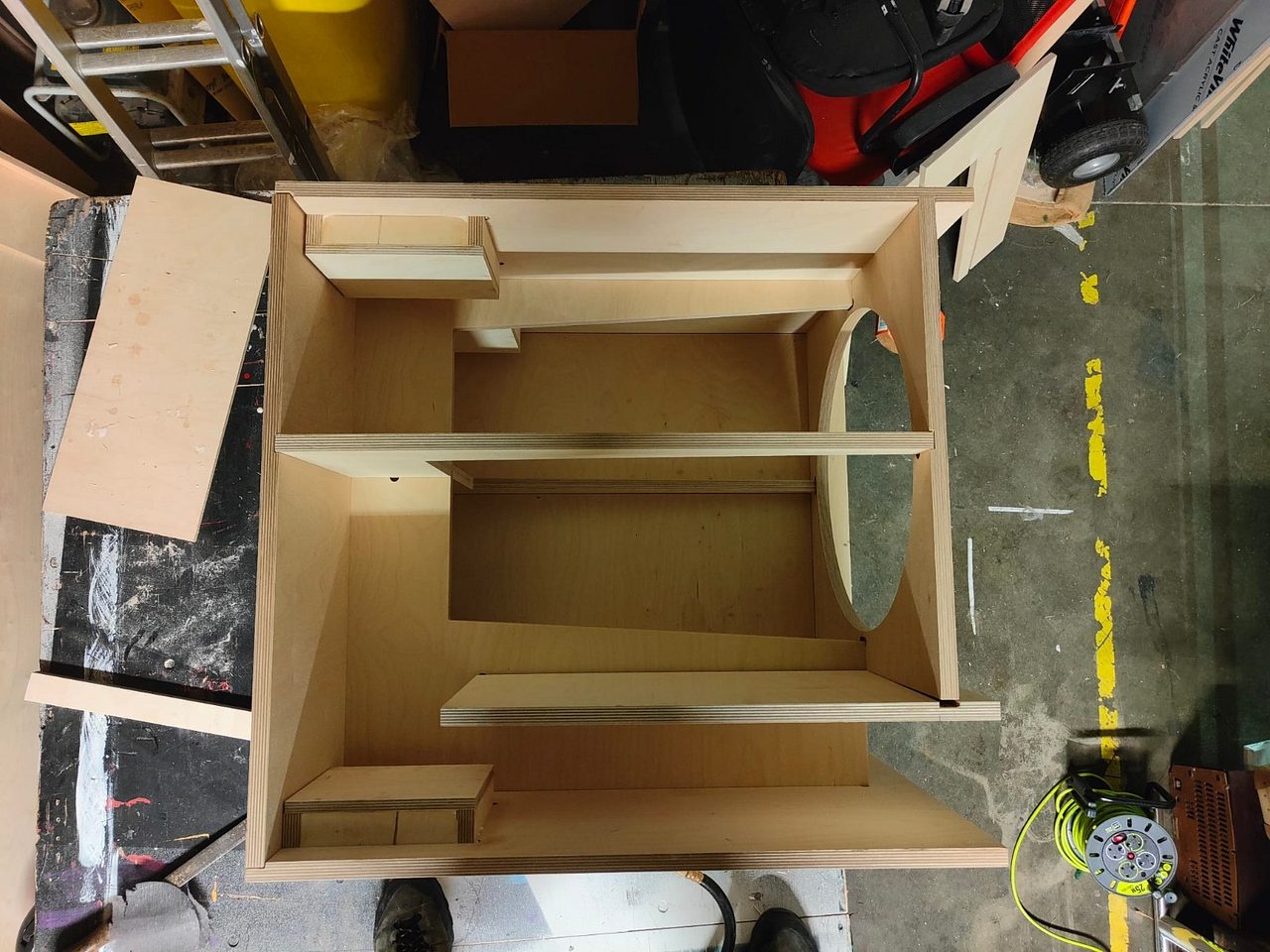

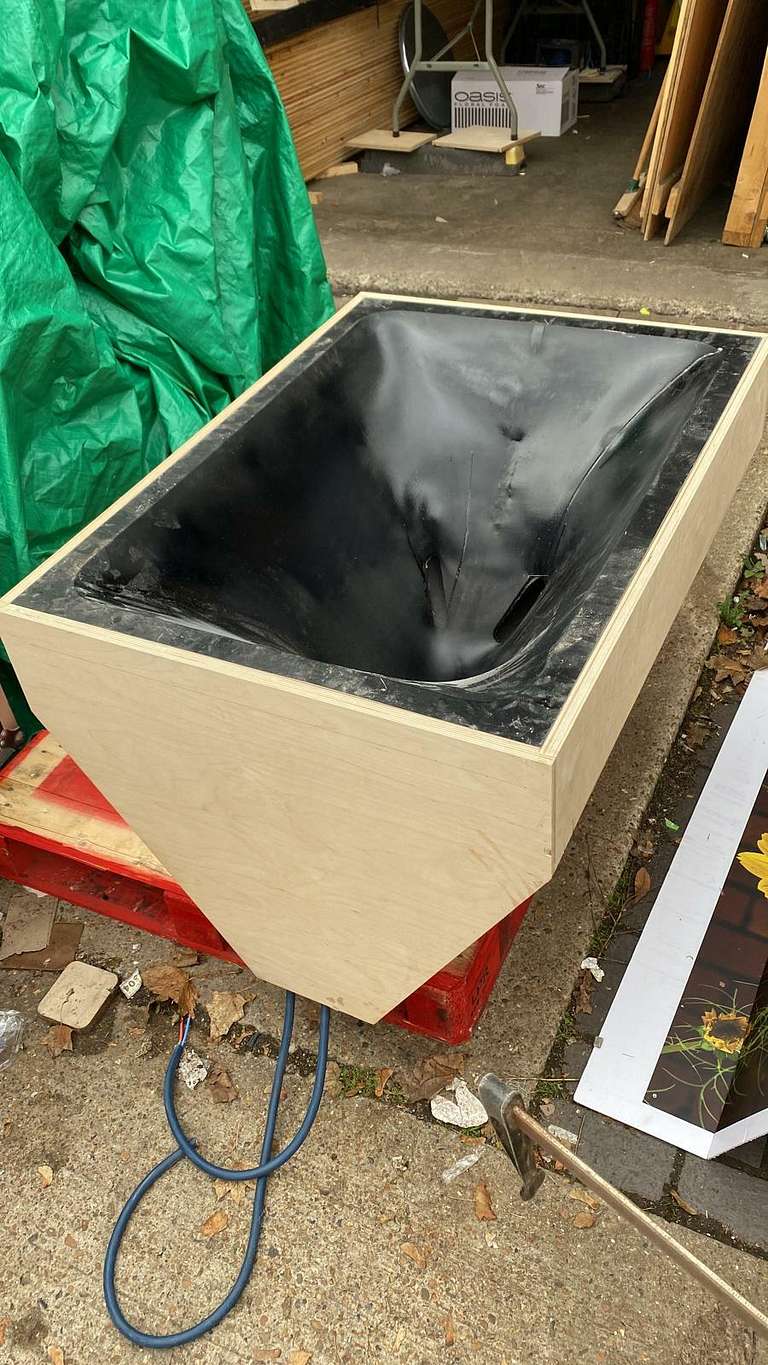

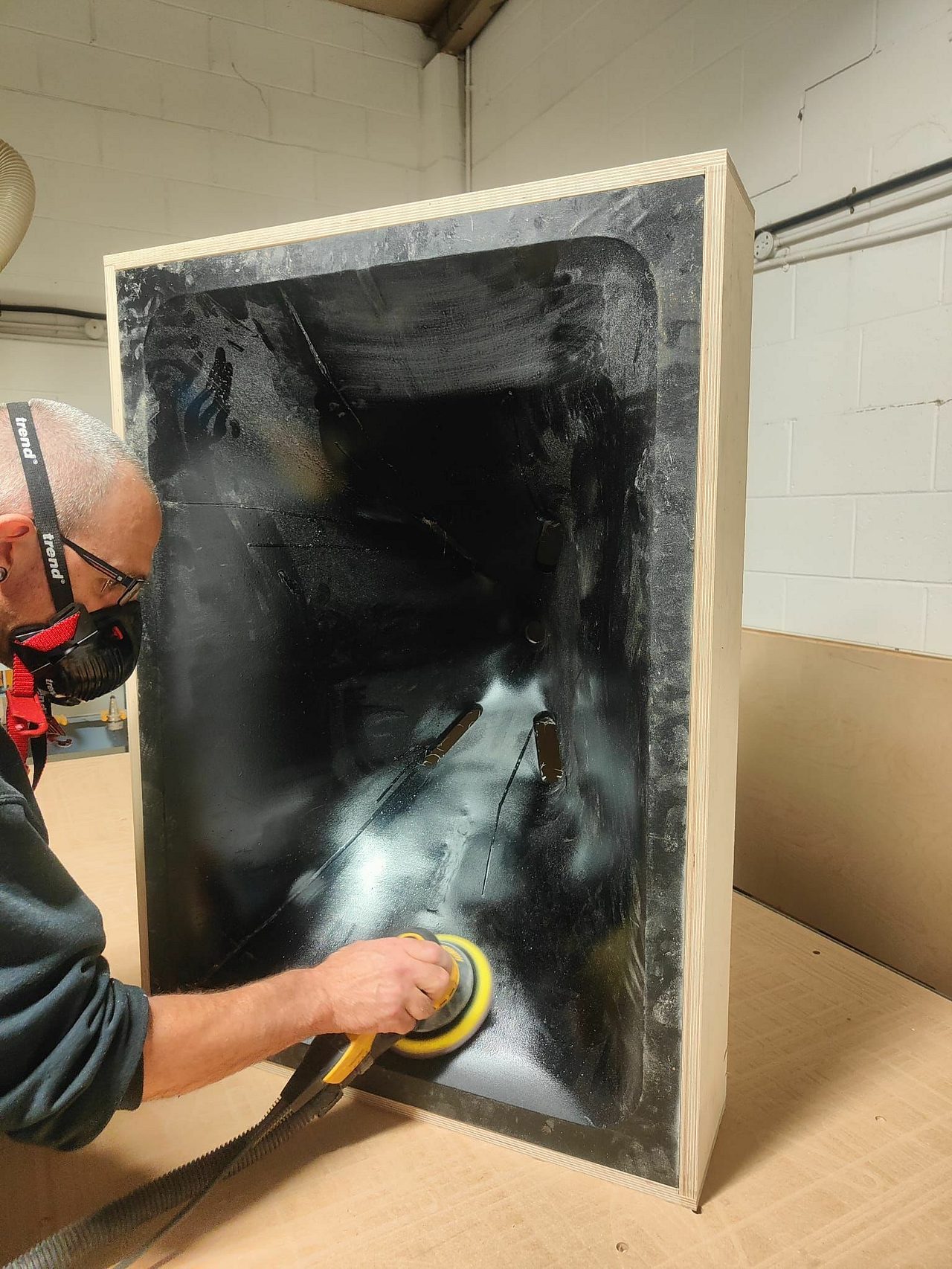

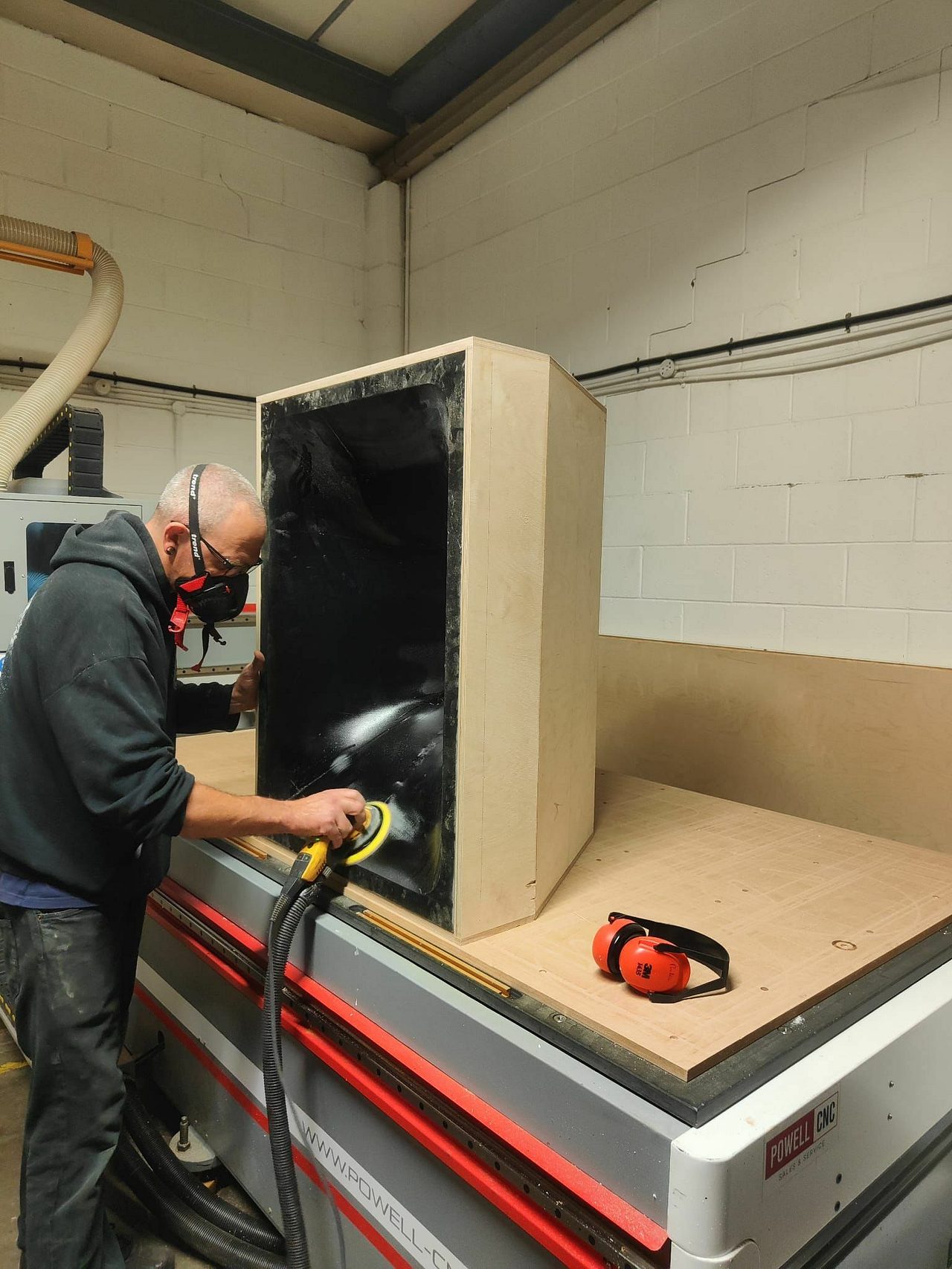

It was our third iter­a­tion, after attempt­ing a unique fibre­glass mould­ing (as seen below) that unfor­tu­nate­ly didn’t have the den­si­ty to reduce vibra­tions with such a large horn. We end­ed up with birch ply due to its supe­ri­or res­o­nance char­ac­ter­is­tics. We will be paint­ing them Klein blue with a spe­cial hand paint­ed design on the horns :)

Whats App Image 2022 10 13 at 7 48 26 PM
Whats App Image 2022 12 18 at 10 45 50 AM
Whats App Image 2022 10 14 at 12 56 54 PM
Whats App Image 2022 10 14 at 12 28 29 PM
Whats App Image 2022 10 13 at 7 45 30 PM

We chose horn-led for a num­ber of rea­sons, one of the main one’s being for a super wide stereo image and dis­per­sion, where we focus on more peo­ple in the venue being in the sweet spot for our demo­c­ra­t­ic sound’

A bet­ter phase coherence

When all sound sources orig­i­nate from the same point, the sound waves main­tain bet­ter phase align­ment, which can improve the clar­i­ty and detail of the sound, espe­cial­ly at the crossover point between the speak­ers and the dri­ver.

Improved Dis­per­sion

A sin­gle horn can con­trol the dis­per­sion of sound waves from both the 15-inch speak­ers and the com­pres­sion dri­ver, result­ing in more con­sis­tent cov­er­age across the fre­quen­cy range. This enhances the sweet spot’ of the stereo image, pro­vid­ing a bet­ter lis­ten­ing expe­ri­ence across a wider area.

Reduced Inter­fer­ence

With all sound sources orig­i­nat­ing from the same point, there’s less chance for sound waves to inter­fere with each oth­er, which can some­times hap­pen when sep­a­rate speak­ers are used.

Stream­lined Design

A sin­gle, uni­fied horn offers a much clean­er look and uses less mate­r­i­al and less space, also mak­ing it eas­i­er to trans­port.

Reduced Dis­tor­tion

The horn can help man­age the load on the speak­ers, reduc­ing dis­tor­tion and allow­ing for high­er vol­ume lev­els with­out com­pro­mis­ing sound qual­i­ty and keep­ing con­sis­tent clar­i­ty (think being able to hear some­one talk when it’s loud)

We’re super hap­py with them, but we’ll be con­sis­tent­ly mak­ing improve­ments to the venue, acoustics etc as it’s a major pas­sion for us, in fact it’s why we want­ed to open a venue in the first place.
